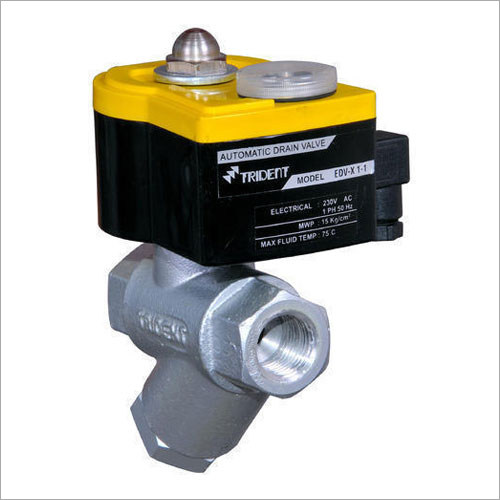

Auto Drain Valves

Auto Drain Valves
Auto Drain Valves
Send Inquiry
Product Code : EDV-X
Price And Quantity
  • Minimum Order Quantity
  • 1
  • Unit of Measure
  • Unit/Units
  • Price
  • 4000 INR
  • Price Range
Product Description
Specifications
  • Input voltage (AC) 230
  • Average power consumption (watts) 7
  • Min. working pressure (Kg/cm2(g) 2
  • Max. working pressure (Kg/cm2(g) 16
  • Timing Cycle(min) 1 to 120
  • Drain (Sec) 1 to 25
  • Valve orifice (mm) 1.3
  • End connection inlet 1/2” BSP(F)
  • End connection outlet 1/2” BSP(F)
  • Environmental Protections IP 55
  • Maximum fluid Temperature (Deg C) 75
  • Maximum condenstate discharge quantity at 7Kg/cm2(g) (Liters/hours) 29
  • Air compressor after cooler (cfm) 100
  • Wet Air receiver (m3) 1
  • Prefilter (cfm) 800
  • Refrigeration dryer (cfm) 200
  • After filter (cfm) 800
  • Dry Air receiver(m3) 1
  • Valve Dimension LxBxH (mm) 97x90x146
  • Weight (Kg) 0.65
